Polysiloxane Based Stationary Phases


Polysiloxanes are most common stationary phases for general separations. They are relatively stable, robust and versatile to wide range of applications. Different functional groups substitutes replace the methyl group on silicon atom, which characterizes the polarity of polysiloxane. Carefully controlling the polymer synthesis, capillary surface treatment and other manufacturing processes can control the column characteristics, such as polarity, retention, efficiency, inertness and repeatability of column performance to v ery tight w indows.

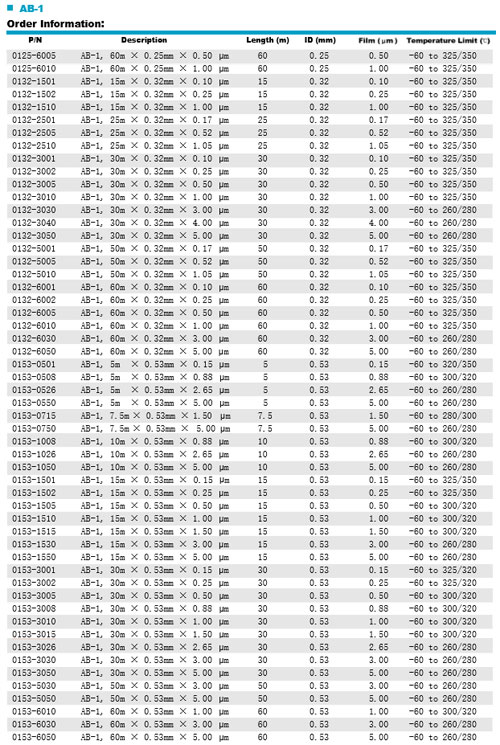

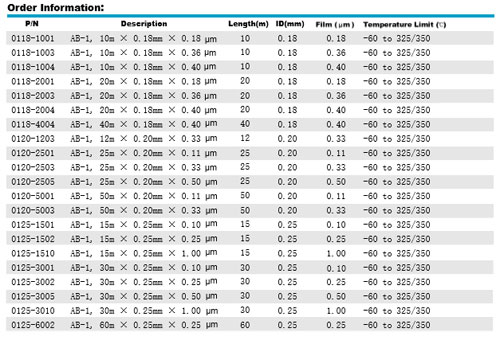

AB-1
• 100% bonded and crosslinked dimethylpolysiloxane
• Non-polar, equivalent to USP phase G2
• Solvent rinsable and high temperature limit
• Wide range of column dimensions and stationary phase film thicknesses
• Low column bleed, inert surface and high efficiency
• Most popular for general applications

Similar phases: DB-1, HP-1, Ultra-1, SPB-1, Rtx-1, CP-Sil 5CB, BP-1, ZB-1, AT-1, MDN-1, OV-1, OV-101

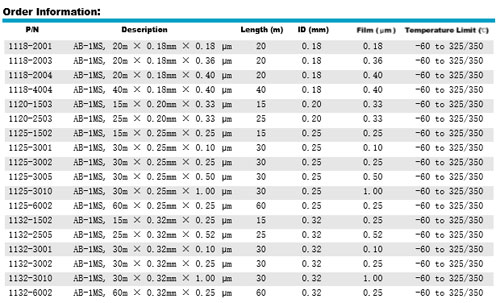

AB-1MS
• Identical selectivity to AB-1 but with much lower column bleed
• Ideal for GC-MS analysis and first choice of a new method development

Similar phases: HP 1MS, DB 1MS, BPX-1, AT-1MS, ZB-1, Rtx-1, CP-Sil 5 CB

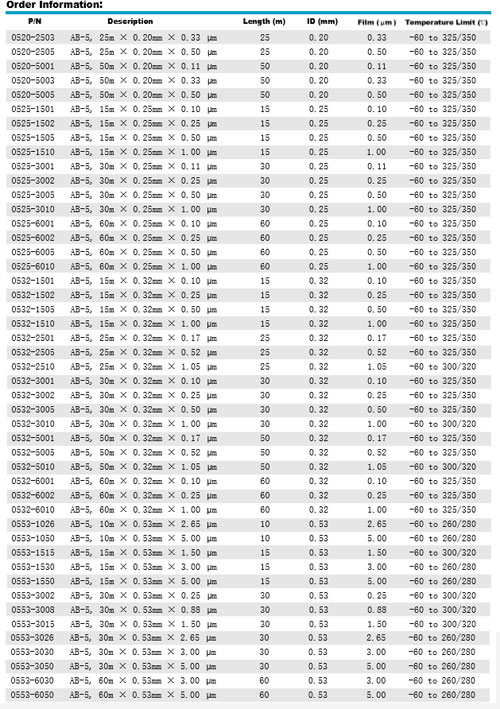

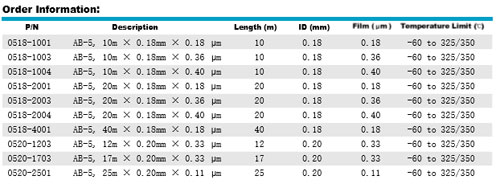

AB-5
• 5% phenyl, 95% dimethylpolysiloxane, bonded and crosslinked
• Non-polar, equivalent to USP phase G27
• Solvent rinsable and high temperature limit
• Wide range of column dimensions and stationary phase film thicknesses
• Low column bleed, inert surface with neutral surface and high efficiency
• Most popular for general applications

Similar phases: DB-5, HP-5, Ultra-5, SPB-5, Rtx-5, CP-Sil 8CB, BP-5, ZB-5, AT-5, MDN-5, OV-5, SE-52, SE-54

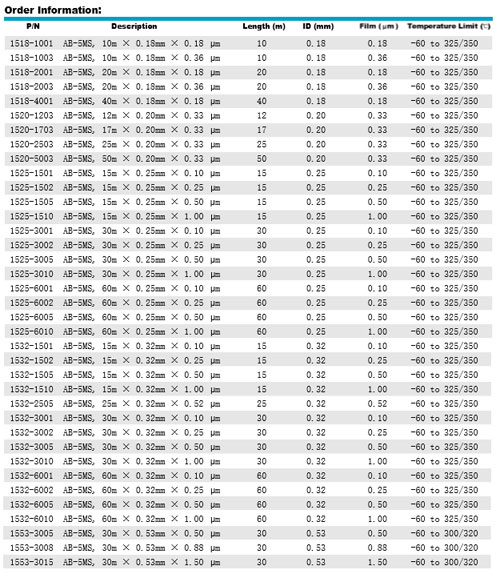

AB-5MS
• Identical selectivity to AB-5 but with much lower column bleed
• Best surface inertness for wide range of compounds
• Ideal for a GC-MS analysis or a new method development

Similar phases: HP-5MS, DB-5MS, BPX-5MS, AT-5MS, Rtx-5MS, CP-Sil 8 CB

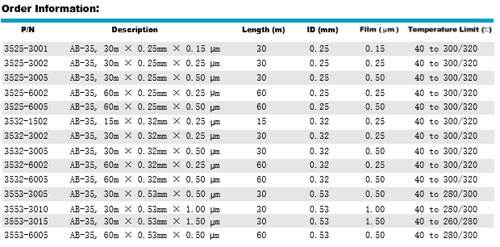

AB-35

• Bonded and crosslinked, 35% phenyl backbone, 65% dim ethylpolysiloxane
• Equivalent to USP phase G42
• Inert for a ctive compounds
• Low column bleed to improve detection sensitivity and quantitation
• Idea for confirmation analyses
• Applications: Arochlors, PCBs, amines, pesticides, pharmaceutical molecules

Similar Phases: HP-35MS, DB-35, BPX-35, AT-35, Rtx-35, SPB-35

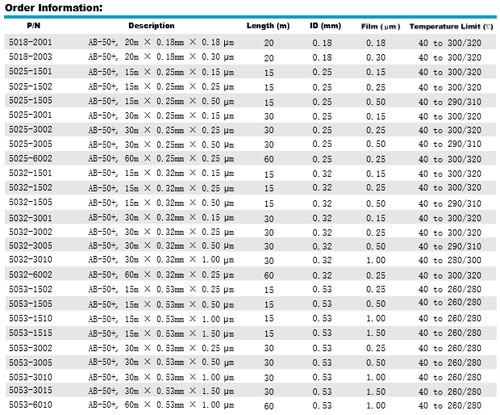

AB-50+

• 50% phenyl, 50% dimethylpolysiloxane
• Mid polar, most popular to general applications
• Bonded and Crosslinked, Solvent Rinsable
• Equivalent to USP G3 Phase

Similar phases: DB-17, DB-17MS, HP-50+, Rtx-50, ZB-50, CP-Sil 24CB, 007-17, AT-50, SPB-50, SP-2250

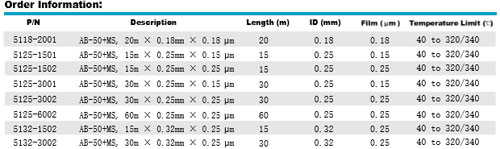

AB-50+MS

• 50% phenyl, 50% dimethylpolysiloxane
• Excellent inertness for active compounds
• High temperature limit
• Low column bleed to improve detection sensitivity
• Mid polar, most popular to general applications
• Bonded and crosslinked, Solvent Rinsable
• Equivalent to USP Phase G3

Similar phases:DB-17, DB-17MS, HP-50+, Rtx-50, ZB-50, CP-Sil 24CB, 007-17, AT-50, SPB-50, SP-2250

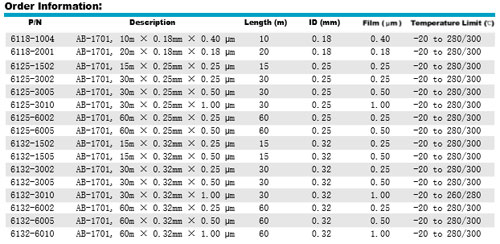

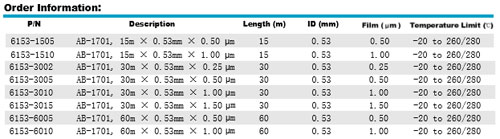

AB-1301

• Bonded and crosslinked, 6% cyanopropyl-phenyl, 94% dimethylsiloxane
• Equivalent to USP phase G43, low to mid polarity
• Inert for many active compounds
• Applications: pesticides, herbicides, halogenates

Similar phases: DB 1701, ZB1701, BP-10, Rtx-1701, CP-Sil 19 CB

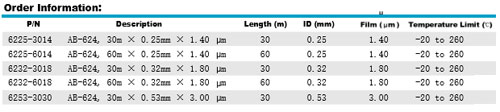

AB-624

• Bonded and crosslinked, specially designed stationary phase for EPA methods
• Low to mid polarity
• Excellent inertness for a ctive compounds
• Equivalent to USP Phase G43
Applications: EPA methods: 501.3,502.2, 503.1, 524.2,601, 602, 8010, 8015, 8020,8240,8260

Similar phases: DB-624, ZB-624, AT-624, Rtx-624,CP-624

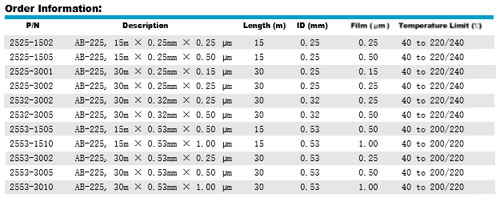

AB-225

• Mid to high polarity 50% cyanopropyl-methyl,
• 50% dimethylpolysiloxane
• Bonded and crosslinked
• Solvent rinsable
• Wide range of applications including: fatty acid methyl esters (FAME), PUFA, alditol, and neutral sterols
• Temperature range from 40℃ to 220℃ / 240℃
• Equivalent to USP phase G7

Similar phases:DB-225, SP-2330, CP-Sil 43 CB, Rtx-225, BP-225, OV-225, 007-225, AT-225



AB-PONA

• 100% dimethylpolysiloxane
• For analyzing petroleum process products
• Tested to ensure the resolution of m-xylene and p-xylene, and of cyclopentane from 2,3-dimethylbutane
• High resolution
• Bonded and crossl inked
• Solvent rinsable

Similar Phases: HP PONA, Petrocol DH, SPB-1, 007-1, Rtx-1, MXT-1

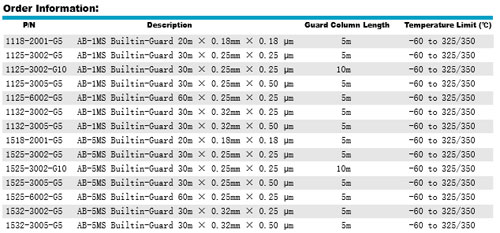

AB Builtin-Guard Column

AB Builtin-Guard column is combination of a AbelBonded® column with a built-in Abel-made guard column. The first 5-meter or 10-meter is part of the AB Builtin-Guard column. The guard column is just deactivated with no coated stationary phase. The single continuous piece avoids the problems of installation hassles, peak shape problems, and leaks associated with unions. Difficult samples, such as pesticides or drugs, can be analyzed without any undesirable contributions from the unions.

Similar Phases: Dura_Guard Column, EZ-Guard Column
